Home/Products/SpeedGoat Smart Pump System

Chemical Injection Pump SystemsClass 1 Division 2 Certified

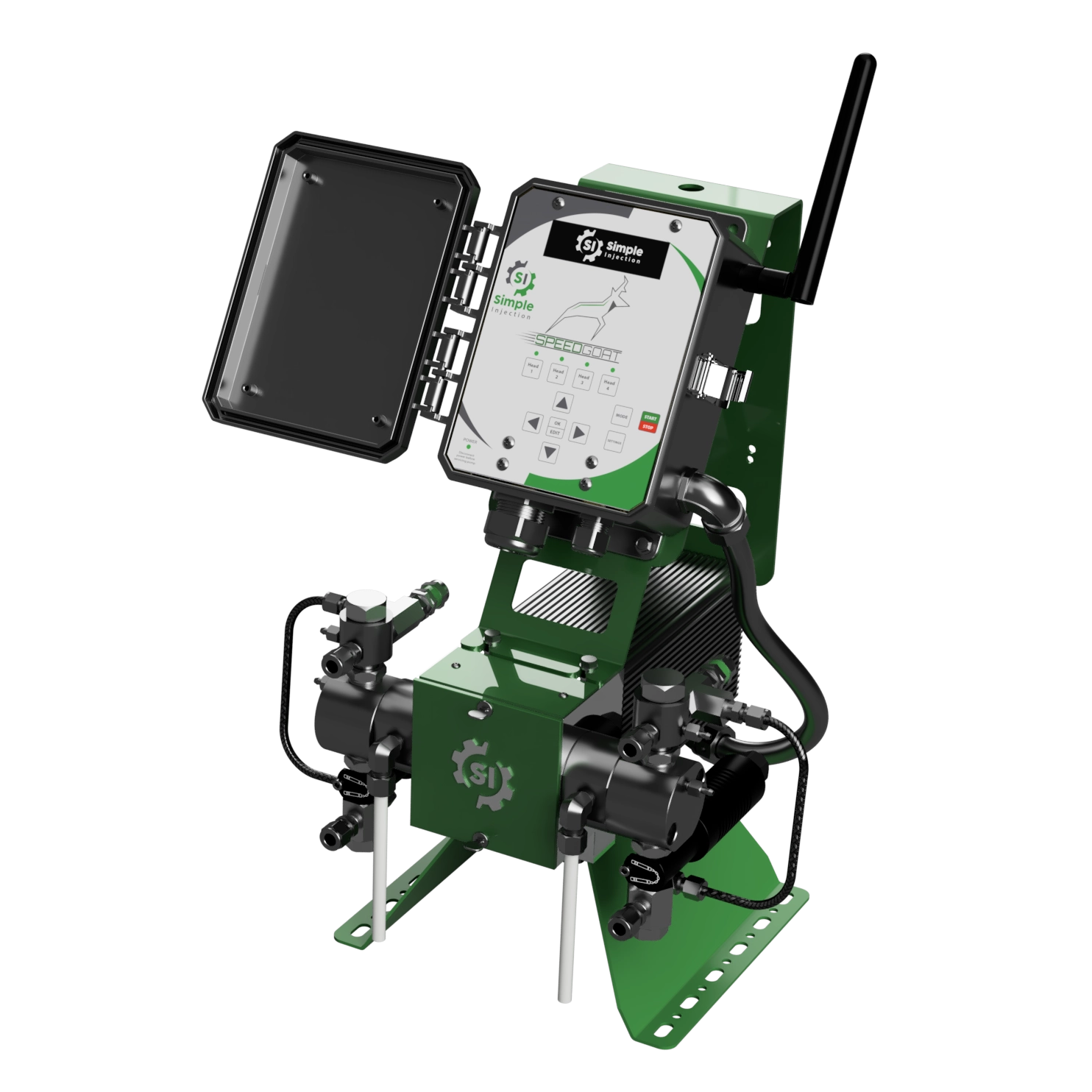

SpeedGoat Smart Pump System

Name: SpeedGoat Smart Pump System
Brand: Simple Injection

Simple, intelligent, remote control, tank level monitoring, and alarms. No monthly fees.

Core Engineering Highlights

Hazardous Rating:Class 1 Division 2 (C1D2)

Power Options:120 VAC / Solar

Max Injection Volume:17 GPD (1/4") / 37.5 GPD (3/8") / 70 GPD (1/2") / 600 GPD (1-1/2")

Drive Motor:120 Watt Brushless (1/4"–1/2") / 300 Watt Brushless (1-1/2")

Telemetry:Remote control, tank level monitoring, alarms, solar data

Connectivity:Cellular or WiFi IoT (No Monthly Cost, 10-Year Plan)

Request Quote Open in Matrix

CAPABILITIES & MODES

Key Features & Operational Advantages

Class 1 Division 2 Certified

Suitable and safe for deployment in hazardous Class 1 Division 2 locations.

Remote Control, Tank Level Monitoring, and Alarms With No Monthly Fees

Easily connect and control your pump in minutes using our intuitive Dashboard - no third party needed.

One Radar Tank Level Monitor Included Free With Every SpeedGoat

Connect up to two wireless radar tank level monitors to one SpeedGoat; one monitor is included free.

Nunchucks Rate Control Compatible

Independent dual head operation allowing different rates and modes per head simultaneously.

Auto Mode

Quickly enter desired Quarts or Gallons Per Day and the pump will adjust the motor speed to meet the desired rate.

Auto Batch Mode

Automated batch injection on a programmed schedule eliminating batch truck service visits.

PPM Mode

Proportional Injection tied to a flow rate using 4-20mA or MODBUS.

Temperature Mode

Automated Methanol injection rates activated below programmable temperature thresholds.

Modbus RTU and SCADA API Integration

SCADA integration using MODBUS RTU or use an API to skip on-site hardwiring.

True Reliability

Brushless motor, PTFE/FFKM seals, solid ceramic plungers.

TECHNICAL SPECIFICATIONS

Engineering Parameters

Control Interface & Modes	• Dual Rate Control• Variable Speed• Continuous Injection• Batch Injection• PPM Injection• Temperature Control• OLED Display• MODBUS/RS485• SCADA Integration
Max Injection Rate (per head)	• 1/4/inch" Plunger: 17 GPD• 3/8/inch" Plunger: 37.5 GPD• 1/2/inch" Plunger: 70 GPD• 1-1/2/inch" Plunger: 600 GPD
Max Discharge Pressure	• 1/4/inch" Plunger: 6,000 PSI• 3/8/inch" Plunger: 3,000 PSI• 1/2/inch" Plunger: 1,250 PSI• 1-1/2/inch" Plunger: 300 PSI
Max Injection Volume	• 1/4/inch" Plunger: 17 GPD• 3/8/inch" Plunger: 37.5 GPD• 1/2/inch" Plunger: 70 GPD• 1-1/2/inch" Plunger: 600 GPD
Drive Motor	• 1/4/inch" Plunger: 120 Watt Brushless• 3/8/inch" Plunger: 120 Watt Brushless• 1/2/inch" Plunger: 120 Watt Brushless• 1-1/2/inch" Plunger: 300 Watt Brushless
Power Requirements	12/24 VDC Solar or 120 VAC (24 VDC nominal 10 Amp)
Fluid Ports & Connections	• Suction: 3/8" Compression• Discharge: 1/4” FNPT
Materials	• 316 Stainless Steel• Solid Ceramic Plungers• PTFE/FFKM Energized Seals• Super Duplex Suction Ball• Ceramic Discharge Ball

RESOURCES

Technical Documentation & Manuals

SpeedGoat Chemical Injection Controller User ManualOperation & Maintenance

SpeedGoat Controller MODBUS User Guide V3SCADA & Automation

SpeedGoat Controller MODBUS User Guide V2SCADA & Automation

Standard Installation and Operating Manual (IOM)Mechanical & Electrical IOM

COMPATIBLE ADD-ONS

Expand This System

These add-ons integrate directly with the SpeedGoat Smart Pump System to add independent dual-head rate control or wireless tank level telemetry.

Dual-Head Rate Controller

Nunchucks Rate Control

Independent dual-head chemical injection rate & mode control without mechanical stroke adjustment.

View Add-On Specs

Wireless Tank Level Sensor

Wireless Radar Tank Level Monitor

Connect up to two wireless radar tank level monitors to one SpeedGoat, with one monitor included free.

View Add-On Specs
